Red Label Siding Insulation

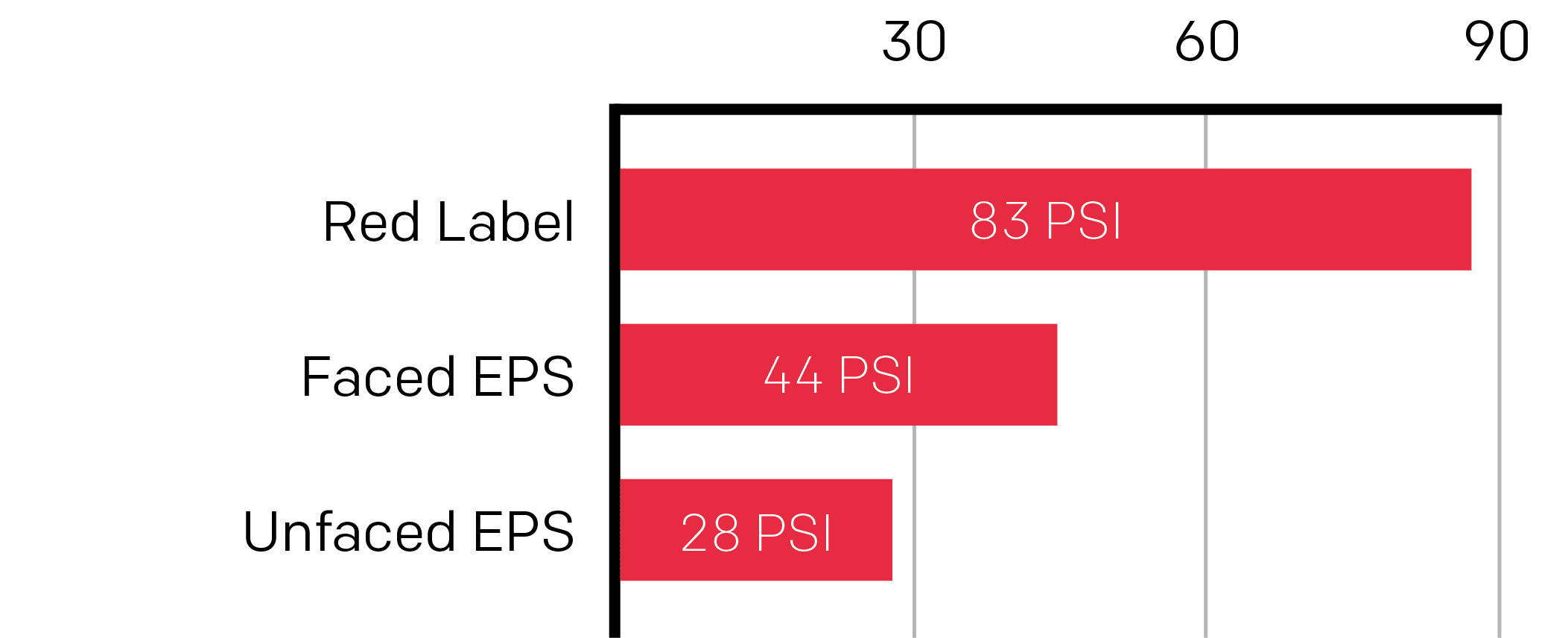

Extreme Strength
ProBoard Red Label features heavy duty film facers on both sides and is manufactured at a heavier density to significantly increase the strength of the panel compared to traditional EPS insulation products.

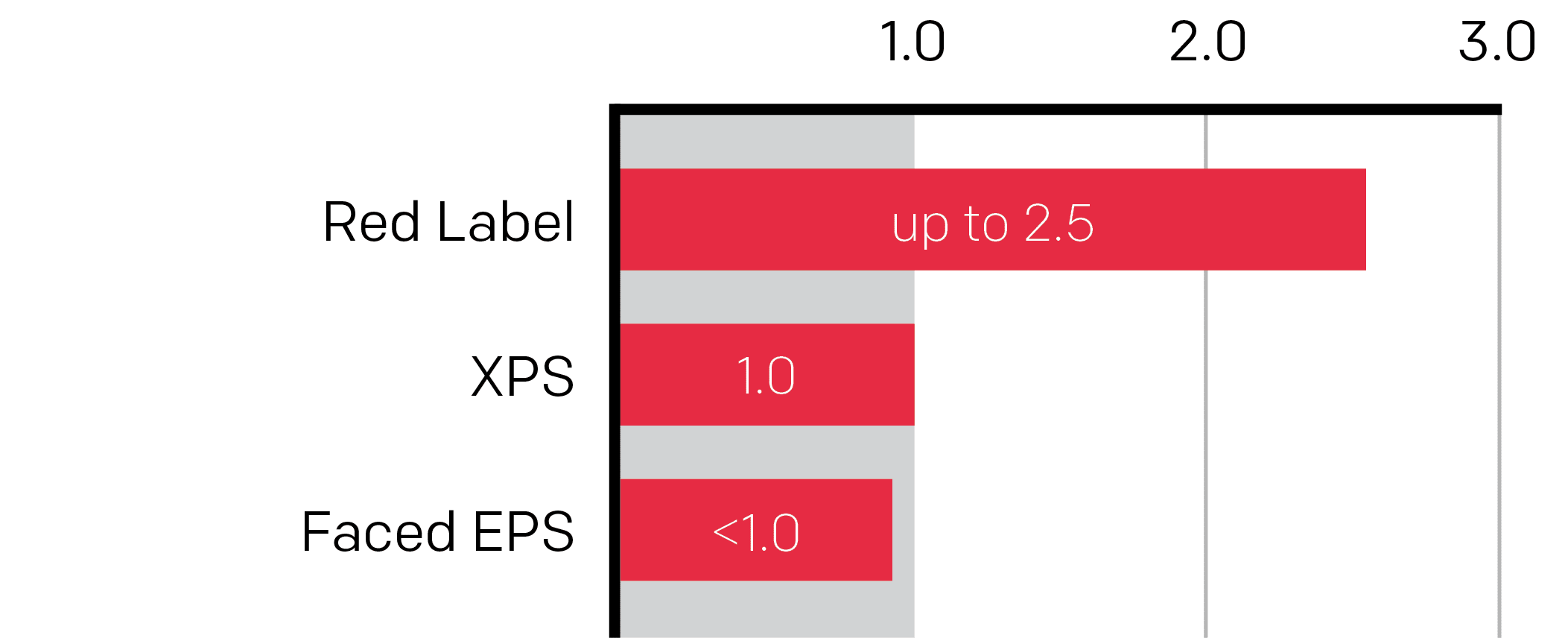

Superior Breathability
ProBoard Red Label features heavy duty film facers on both sides and is manufactured at a heavier density to significantly increase the strength of the panel compared to traditional EPS insulation products.
Specifications & Downloads
| PRODUCT |
| Red Label 150 |
| Red Label 250 |
| Red Label 380 |
| Red Label 500 |
| R-VALUE |
| R-1.5 |
| R-2.5 |
| R-3.5 |
| R-5.0 |
| THICKNESS |
| 0.3" |
| 0.5" |
| .75" |
| 1.0" |
| FORMAT |
| Fanfold 4' x 48' |
| Fanfold 4' x 48' |
| Sheathing 4' x 8' |
| Sheathing 4' x 8' |
Red Label Brochure (pdf 1.57 MB)
Red Label Data Sheet (pdf 0.13 MB)
How to Trim Windows & Doors

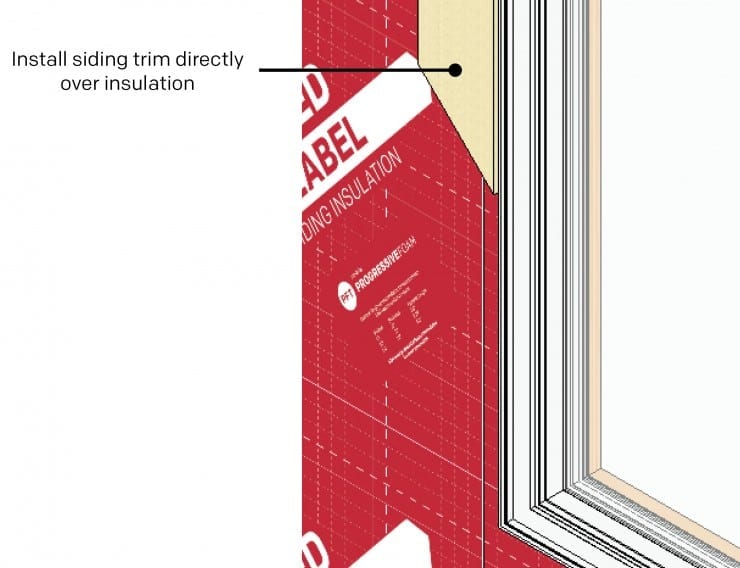

If Red Label is Thinner than the Jamb
Butt insulation directly against jamb, then install trim piece directly on top of the insulation.

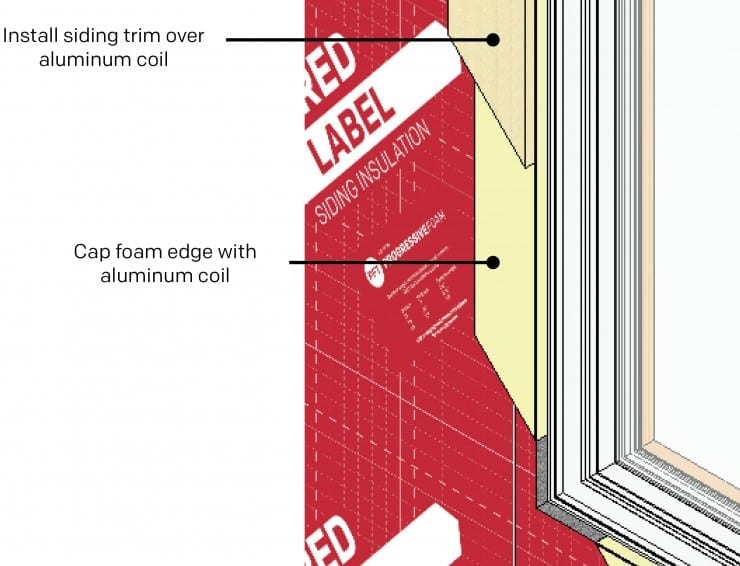

If Red Label is Thicker Than the Jamb
Butt insulation directly against the jamb. Use aluminum coil and a break to create a cap to cover the insulation. Install trim piece directly on top of the coil.
Made with Neopor
Take energy savings to the next level
White EPS
EPS is a closed cell, rigid foam insulation made of 98% air and 2% plastic. EPS has been proven to be a safe material which provides excellent thermal insulation properties.
Neopor
Neopor® has similar properties to EPS, but contains high-purity graphite particles which reflect heat as it passes through the insulation, slowing it down. This graphite gives our Premium Series insulation its super-efficiency and dark gray color.
